Principles and Advantages of Vacuum Aluminum Brazing
Vacuum aluminum brazing is a precision joining technology performed in a vacuum environment. It utilizes magnesium vapor to disrupt the dense oxide film on the aluminum surface, thereby enabling liquid filler metal to uniformly wet the joint without the need for flux. This process facilitates the high-strength, corrosion-free, and contamination-free joining of complex aluminum alloy components, such as cold plates and heat exchangers.
Key Industrial Application Fields
Due to its characteristics of high cleanliness and high-strength bonding, this technology is widely applied in the following fields:
- • Aerospace: Radar cold plates, waveguides, and airborne heat exchangers.
- • New Energy Vehicles: Battery cooling plates and motor controller heat sinks.
- • Industrial Refrigeration: Plate-fin heat exchangers used in air separation equipment.
The Critical Importance of Furnace Temperature Uniformity
Furnace temperature uniformity is regarded as the “lifeline” of vacuum aluminum brazing, its critical importance is primarily manifested in the following three stringent process requirements:
- • An extremely narrow temperature control window: The melting point of the aluminum filler metal is very close to that of the aluminum base metal. If the temperature variation within the furnace exceeds ±5°C, it may result in un-melted filler metal (incomplete brazing) in certain areas, while simultaneously causing the base metal in other areas to begin softening or even undergo localized melting (collapse).
- • Ensuring the efficacy of magnesium vapor: The sublimation rate of magnesium is extremely sensitive to temperature. Only when the temperature throughout the entire furnace chamber is highly uniform can the magnesium vapor be guaranteed to distribute evenly within the intricate crevices of complex workpieces, thereby thoroughly disrupting the oxide film and ensuring consistent braze penetration.
- • Controlling thermal deformation and stress: Aluminum materials possess a high coefficient of thermal expansion. If furnace temperatures are non-uniform, large, thin-walled components (such as water-cooled plates) will generate immense thermal stress during heating or cooling cycles; this leads to workpiece warping and deformation, directly compromising subsequent assembly precision. Consistent joint quality: For plate-fin heat exchangers—which feature thousands of individual braze joints—furnace temperature uniformity determines whether the joint strength at the center of the assembly matches that at the edges, serving as the pivotal factor in guaranteeing the product’s pressure-withstanding capability.
Performance Validation

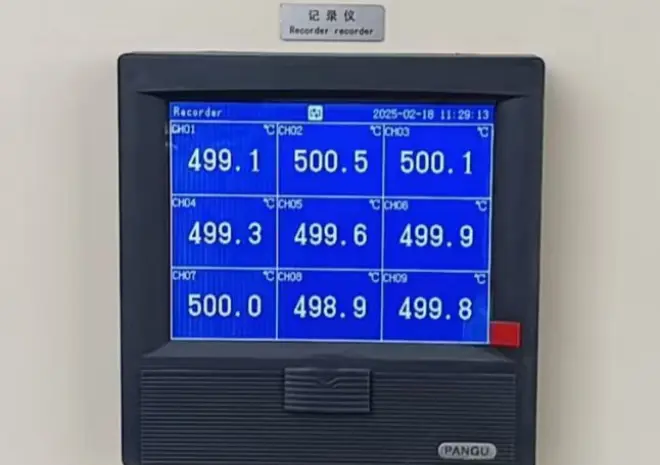

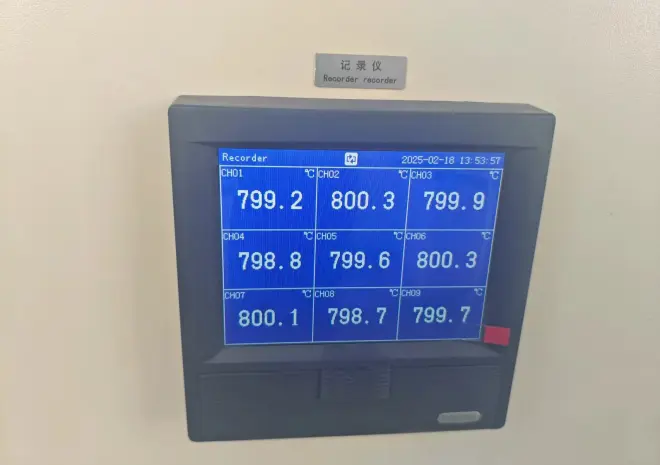

Presented below are actual field test data demonstrating the temperature uniformity of SIMUWU vacuum aluminum brazing furnaces at common operating temperatures:
About SIMUWU
SIMUWU vacuum aluminum brazing furnaces have been exported to over 20 countries—including Russia, Vietnam, South Korea, Indonesia, Poland, and the UAE—and feature highly mature technology. We offer our clients a comprehensive, one-stop service experience: from the initial confirmation of technical requirements, through the design of solutions and engineering drawings, to the final stages of shipment, delivery, installation, commissioning, and operational training—we take full responsibility for every step of the process. The control system incorporates an extensive process database, with particular emphasis placed on the various process curves essential for aluminum brazing. Consequently, we have independently developed and upgraded the furnace temperature uniformity capabilities of our vacuum aluminum brazing furnaces, ensuring that temperature fluctuations remain within ±3°C across the entire heating range.
Should you have any technical questions or requests, please feel free to contact us at any time， we are dedicated to serving you.
