Production of High-Pressure Die-Casting Molds: Application of Vacuum Gas-Quenching Furnaces

2026-10-08 09:10

For high-pressure die-casting molds, strict requirements regarding the degree of deformation and quenching effectiveness are paramount. Furthermore, given the large size of these molds, the processing equipment must meet high load-bearing standards.

SIMUWU’s RVGQ-774 vacuum gas quenching furnace is specifically designed for this type of mold:

1. It features a 6-bar high-pressure gas quenching capability, ensuring optimal cooling rates and superior quenching quality, with the option to upgrade to 12-bar or even higher pressures.

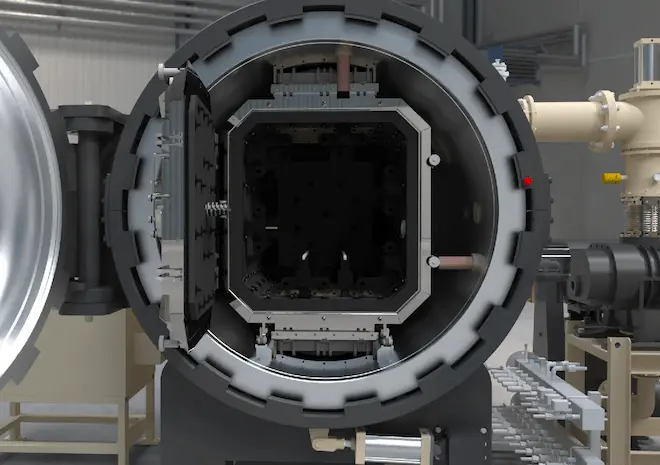

2. The heating chamber supports a maximum load of 1,500 kg, offering robust load-bearing capacity, broad applicability, and a long service life.
3. It utilizes a top-and-bottom opposing gas flow design to minimize the impact of gas quenching on the workpiece, thereby preventing cracking and deformation.

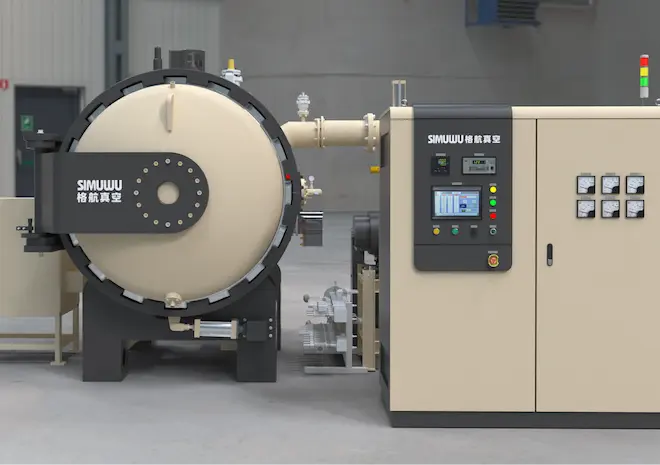

SIMUWU RVGQ-774 vacuum gas quenching furnace featuring a top-and-bottom opposing gas flow structure for high-pressure die-casting mold heat treatment.

The specific specifications for the RVGQ-774 are as follows:

Furnace type	Horizontal, single-chamber, internal circulation
Loading method	Front loading
Effective working zone size	700×700×400(W×H×L mm)
Loading capacity	1500kg(including jig)
Power supply	3 Phase 380V(±5% );50Hz
Total power	250kw
Heating power	200kw
Cooling fan power	160kw
Max. design temp.	1350℃
Working temp.	500-1250℃
Temperature uniformity(vacuum, empty furnace,500-1000℃)	9-point temperature survey (±5°C) (Temperature survey standard: AMS2750H)
Temp. Control accuracy	Type S thermocouple ±1°C
Heating zone	Single-zone temperature control
Heating element	High-purity graphite
Ultimate vacuu (empty furnace, cold state, after drying and degassing)	8×10-4Pa
Working vacuum(empty furnace,room temp.)	8 x 10-3 Pa
Evacuation time (from empty, cold furnace to operating vacuum level, following diffusion pump warm-up)	≤30min
Pressure rise rate (empty furnace, cold state)	≤0.67Pa/h
Cooling method	Air cooling / Natural cooling
Cooling gas	Nitrogen or argon (purity: 99.99% or 99.999%)
Cooling rate (empty furnace, 1100°C to 150°C)	≤15min
Maximum inflation pressure (absolute pressure – adjustable)	<6bar
Temperature control method	Intelligent Programmable Temperature Controller
Control method	PLC Automatic/Manual Interlock Protection Control
Furnace body color	Customized
