RVGQ-669 10-Bar Vacuum Gas Quenching Furnace Loaded and Shipped

2026-05-18 14:22

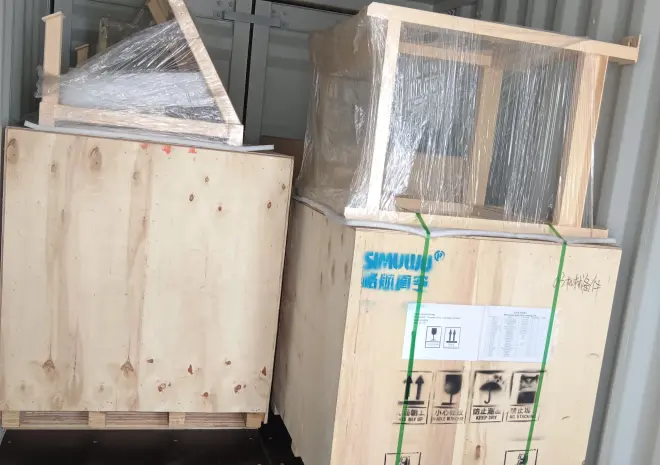

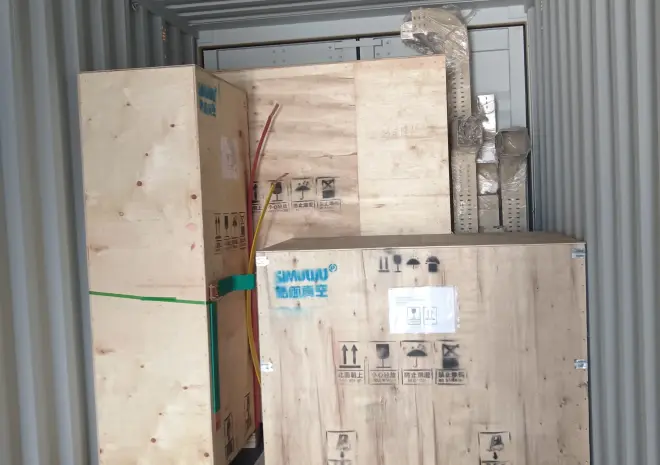

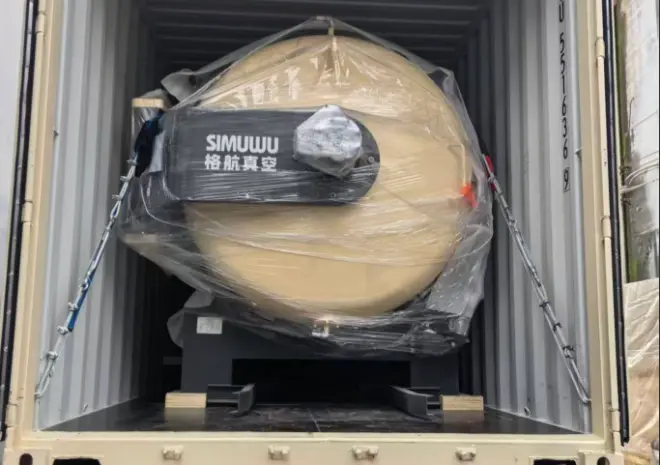

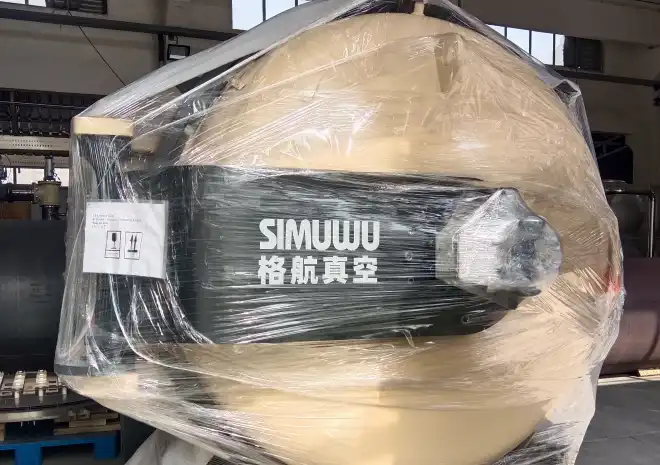

Recently, SIMUWU’s RVGQ-669 (10 Bar) high-pressure vacuum gas quenching furnace has completed production and is currently undergoing packaging, installation, and shipment. This vacuum furnace is destined for the United States, where it will be primarily utilized for the production of stainless steel products, such as automotive components.

The specific technical parameters for this RVGQ-669 unit are as follows:

Furnace type	Horizontal type,single chamber, internal recycle
Loading method	Front loading
Max. Loading size	600×600×900(W×H×L mm)
Max. Loading weight	500kg (including jig)
Power supply	3 phase, 380V(±5%); 50hz
Total power	210kw
Heating power	160kw
Cooling fan motor power	200kw
Max.design temperature	1350℃
Working temperature	1250℃
Temperature uniformity	9 points temp testing (±5℃)
Temperature control accuracy	S type thermocouple ≤ ±1℃ (standard AMS 2750F)
Quantity of heating zone	1 zone
Heating element	High-purity graphite
Heating rate(The room temperature of the empty furnace rises to 1100℃)	≤70min
Ultimate vacuum	6.7×10-3pa
Work vacuum	6.7×10-2pa
Time to reach working vacuum (empty furnace, cold state)	≤30min（Pump the furnace from atmospheric pressure to 5 Pa in cold state when it is empty）
Pressure rise rate (empty furnace, cold state)	≤0.67 Pa/h
Cooling method	Air cooling/Natural cooling
Cooling air	Nitrogen or Argon (purity: 99.99% or 99.999%)
Max charging pressure(absolute pressure)	＜10bar (absolute pressure-adjustable)
Temperature control method	Intelligent programmable temperature controller for automatic temperature control
Control mode	PLC automatic / manual control interlock protection
Furnace shell color	Customized

Service knows no finish line; delivery marks only the beginning. From the initial design phase to the protective measures taken during shipment—and extending from comprehensive installation, commissioning, and training services to ongoing maintenance and repair—SIMUWU is dedicated to sparing no effort in safeguarding both you and your production operations.
