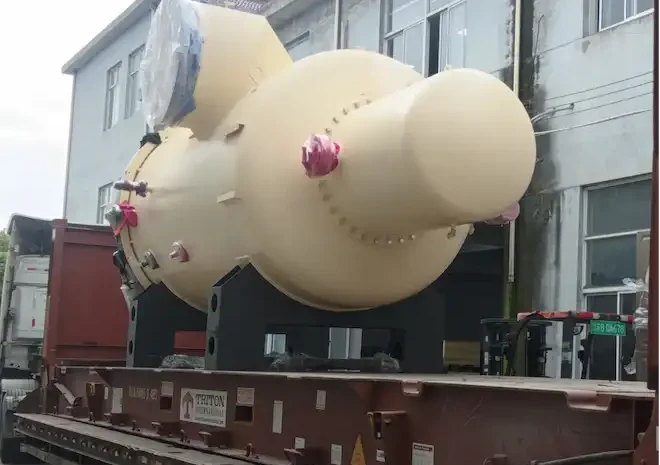

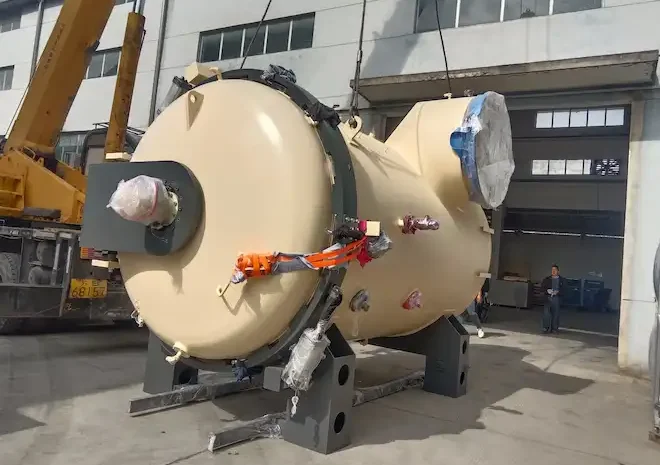

Recently, SIMUWU completed the production of the RVGQ-9915 vacuum gas quenching furnace and shipped it to South Korea.
This RVGQ-9915 vacuum gas quenching furnace has an effective working area of 900*900*1500 mm. Equipped with a three-stage Leybold diffusion pump, it achieves an ultimate vacuum of 6.7*10-4 Pa; the maximum gas quenching pressure can reach 6 Bar; and it enables rapid quenching: reducing the temperature from 1200℃ to 150℃ in just 6 minutes.
The following are the specific technical parameters of the RVGQ-9915 6Bar vacuum gas quenching furnace:
| Type | Horizontal type，single chamber |
| Heating chamber shape | Round |
| Loading capacity | 2000 Kg |
| Ultimate vacuum degree(Empty &Cold furnace condition ) | 6.7.0*10-4Pa |
| Pressure rising rate（Empty &cold furnace condition） | ≤0.67 pa/h |
| Maximum design temperature | 1300℃ |
| Working temperature | 1200℃ |
| Temperature rising rate(ambient temperature to 1100℃) | ≤ 70 min |
| Temperature uniformity(vacuum, empty, 1100℃, 9 points temperature measurement) | ±5℃ |
| Uniform Temperature Zone size (W*H*L) (mm) | 900 x 900 x 1500 |
| Temperature control mode | Intelligent programmable temp controller |
| Heating way | Convective heating |
| Control Mode | PLC automatic / manual control interlock protection |
| Max charging pressure（absolute pressure） | 6 bar （adjustable） |
| Equipment colour | Customized |
SIMUWU‘s main product line includes vacuum gas quenching furnaces, vacuum annealing furnaces, vacuum tempering furnaces, vacuum oil quenching furnaces, vacuum sintering furnaces, and vacuum brazing furnaces, which have been exported to over 40 countries worldwide. For any technical questions or configuration requirements, please feel free to contact us.We are pleased to assist you.
-
