SIMUWU Up-and-Down Air-Blowing Structure Furnace: Meeting Rigorous Heat Treatment Requirements

1. Bidirectional Airflow Technology for Vacuum Quenching

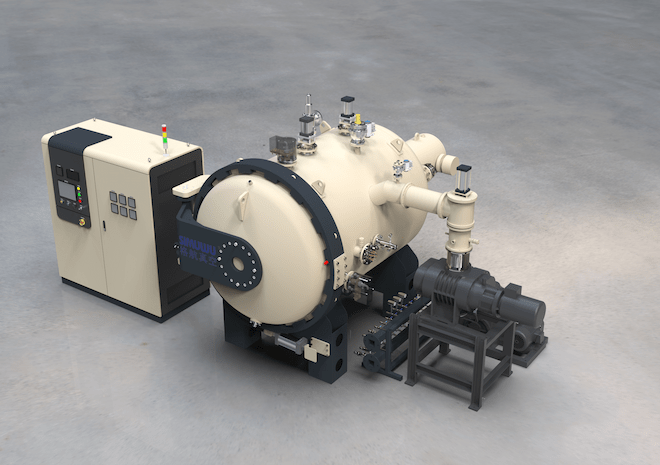

Leveraging its deep industry expertise, the R&D Department at SIMUWU has officially launched a brand-new vacuum gas quenching furnace featuring an innovative “up-and-down counter-flow” structure. Through a pioneering bidirectional airflow design, this model effectively resolves the long-standing challenges of uneven heating and workpiece distortion often associated with traditional unidirectional cooling methods.At the same time, this structure ensures product stability, minimizing the extent of deformation.

2. Dynamic Reciprocating Flow Pattern

Its core strength lies in its precise, dynamic airflow control system. During the critical quenching phase, the cooling medium is no longer restricted to a single direction; instead, a pre-programmed sequence executes a high-frequency alternating cycle of “top-in, bottom-out” and “bottom-in, top-out” flow patterns. This reciprocating, counter-flow configuration completely eliminates the cooling “dead zones” and temperature gradients inherent in traditional unidirectional systems, allowing the high-pressure gas stream to penetrate every crevice of the workpiece as if providing a “360-degree embrace.” Through this dynamic equilibrium, the equipment achieves exceptional cooling linearity, ensuring that the heat transfer coefficient remains virtually uniform across every surface of complex structural components.

3. Technical Specifications and Performance

> Furnace Temperature Uniformity (during holding phase): ≤ ±5°C.

> Maximum Operating Temperature: 1300°C.

> Ultimate Vacuum Level: 6.7 × 10⁻³ Pa.

> Cooling Gas Pressure Ratings: 6 / 10 / 15 / 20 bar.

> Uniform Temperature Zone Dimensions (W × H × L): 400 × 400 × 600 to 900 × 900 × 1500 mm (customizable).

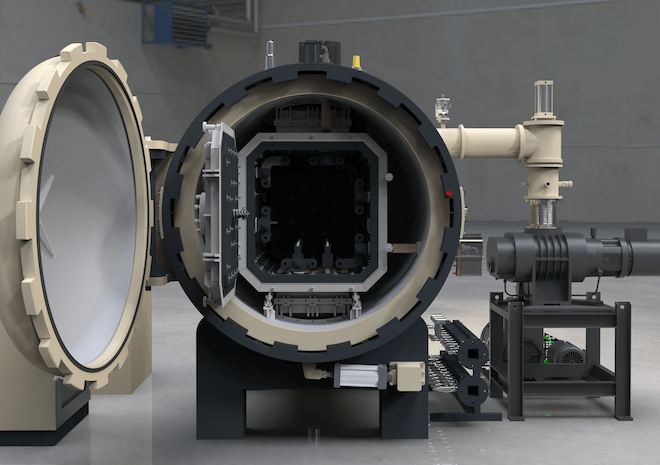

The heating chamber features a specialized structure with superior airtightness, allowing the up-and-down air-blowing structure furnace to also function effectively as a high-quality tempering furnace.

For more information about the up-and-down air-blowing structure furnace, or to obtain detailed specifications and customized heat treatment solutions, please contact us.
